Magnetic Track Lighting


ME Series G2 · DC 24V Modular Magnetic System · cETLus / CE / RoHS · 5-Year Warranty


Back to Prefab Systems
Product Overview

Magnetic Track Lighting System

The Carve Magnetic Track Lighting System is a DC 24V low-voltage modular lighting platform. Light modules attach magnetically to the track — installed, repositioned, or swapped in seconds without tools — and the track can be recessed, surface-mounted, or suspended. Mix linear, grille, spot, and decorative pendant modules on a single run for layered space and accent lighting.

DC 24V
SELV Safe
Low Voltage
>90
Color Rendering
Index (CRI)
5 YRS
Product
Warranty
System Specifications

Technical Specifications

System
Operating Voltage DC 24V (SELV — safety extra-low voltage)
Drivers Track drivers 100W / 200W; feeder power unit up to 180W (driver inside)
Mounting Recessed, surface-mounted, or suspended (pipe or cable kit)
Module Attachment Magnetic — tool-free installation, replacement, and repositioning
Color Temperature (CCT) 3000K / 4000K
Color Rendering CRI > 90
Material / Finish Aluminum, black (brass accent available on select spot modules)
Ingress Protection IP20 (indoor use)
Certifications cETLus, CE, EMC, RoHS, TÜV Rheinland tested
Warranty 5 years
Magnetic Safety — TÜV Rheinland Pull Test
Requirement Module retention force ≥ 4× module weight (31.36N for a 0.8 kg module)
Result 34N / 39N measured pull-off force — Pass (Report No. 50132428 001)
Light Modules

Available Module Types

Linear Grille (Anti-Glare)
15W / 22W · 1200 / 1760 lm · 15° / 30° / 45°, ±30° aimable
Linear Diffused
15W / 22W / 45W · 1200 / 1760 / 3600 lm · 120°
Asymmetric Wall-Wash
20W · 1600 lm · single or dual polarized optics for walls & shelving
Adjustable Track Spot
5W / 15W · 400 / 1200 lm · adjustable 15–30° beam
Mini Spot (Ultra-Narrow)
8W · 640 lm · 10° accent beam (black or brass)
Folding Cylinder Spots
5W / 10W / 15W · 400 / 800 / 1200 lm · 24° / 35° / 45° (black or brass)
Pendant Cylinders
5–15W · 400–1200 lm · 35° / 45° / 120°, incl. anti-glare versions
Decorative Pendants
Glass ball & cone with brass detail · 5W · 400 lm · 120°
Tracks, Connectors & Accessories

Flexible Configuration, Any Space

The system supports surface-mounted, recessed, and suspended installation with a full range of connectors to create any layout — straight runs, corners, T-junctions, and even circular or hexagon suspended shapes.

Surface / suspended track: 1000 mm aluminum profile (39–40 mm wide)
Recessed track: 1000 mm trimless recessed profile with end caps
90° H / V corners, T and + junctions, 120° corners for hexagon layouts
Feeder power box, feeder cable, conductive connector kits
Tool-free module attachment — reposition without turning off power

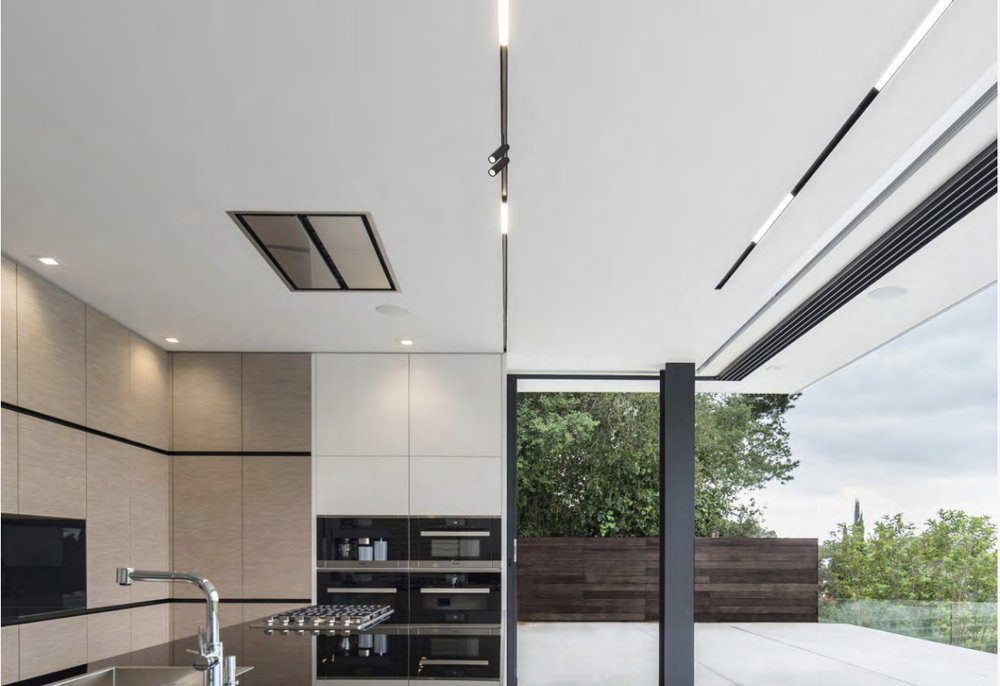

Magnetic track lighting installation
Pre-Configured Suspended Shapes

Statement Lighting Out of the Box

Circle
Ø900 (max 75W) · Ø1200 (max 100W) · Ø1700 (max 150W)
Square & Rectangle
600×600 (75W) · 900×900 · 300×1200 · 300×1800 (max 100W)
Hexagon
Modular honeycomb layouts — suspended or surface-mounted
Typical Applications

Where It's Used

Residential Living Spaces & Kitchens
Offices & Conference Rooms
Retail & Supermarket Aisles
Galleries & Museums (Wall-Wash)
Hotels & Hospitality
Showrooms & Exhibitions
